RC-12 Guardrail
Recon / 1,050 shp / 16,500 lbs / Twin Turboprop
Year: Introduced ~2010 (RC-12X upgrade program)
Role: Signals intelligence (SIGINT) / electronic reconnaissance
Crew: 3–4 (2 pilots, mission operators)

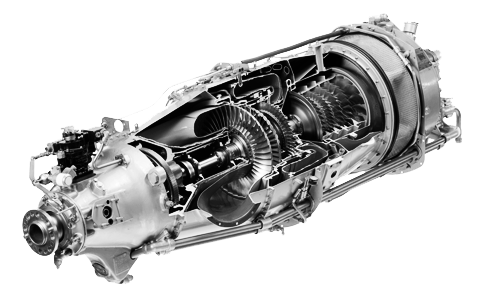

Engine: 2 × Pratt & Whitney Canada PT6A-60A turboprops
Power: 1,050 shp (783 kW) each
Top Speed: ~312 mph (502 km/h)
Combat Range: ~1,500 mi (2,414 km)
Ferry Range: ~2,000 mi (3,219 km)
Service Ceiling: ~35,000 ft (10,668 m)
Rate of Climb: ~2,500 ft/min (12.7 m/s)
Empty Weight: ~10,500 lbs (4,763 kg)
Max Takeoff Weight (MTOW): ~16,500 lbs (7,484 kg)
Length: 46.7 ft (14.2 m)
Wingspan: 57.9 ft (17.6 m)
Armament: None (equipped with SIGINT / electronic surveillance systems)
The RC-12 Guardrail is a family of U.S. Army signals intelligence (SIGINT) aircraft derived from the Beechcraft King Air series and designed to collect, process, and relay electronic intelligence from the battlefield. First introduced in the 1970s, the Guardrail system combined airborne sensors with ground-based processing stations to intercept and locate enemy radio communications and radar signals. Over time the platform evolved through multiple variants, including the RC-12D, RC-12K, RC-12N, and RC-12P, each adding improved sensors, data links, and processing capabilities. These aircraft played an important intelligence role during the Cold War and later in conflicts such as the Gulf War, Iraq, and Afghanistan, where they helped locate insurgent communications networks and coordinate battlefield intelligence.
